How to Clean and Maintain Ductwork Fabricated from the Kingspan KoolDuct System
Every year, millions of people across the UK – whether in offices, schools, hospitals or homes - rely on ventilation and air conditioning systems to ensure a consistent supply of clean, fresh air.
Where mechanical ventilation is provided, the system needs to be maintained in efficient working condition, which includes routine cleaning as necessary.
When undertaking cleaning operations, it is important to ensure that the tools and processes used are appropriate for the type of ventilation system in use. To support all the professionals involved, including maintenance managers and cleaning contractors, we recently asked the National Association of Air Duct Specialists UK (NAAD UK) to carry out an independent assessment of how best to clean and maintain phenolic ductwork fabricated from Kingspan KoolDuct insulation boards.
In this article, we will start by looking at the basic requirements for cleaning mechanical ventilation systems. We will then review the specific recommendations from NAAD UK for phenolic ductwork.
Note: Please note that this article does not cover grease-laden kitchen extract systems.
Is it a legal requirement to maintain and clean mechanical ventilation systems?
Maintenance (and cleaning) of equipment and devices for mechanical ventilation systems is mandatory according to the Workplace Health, Safety and Welfare Regulation 19921 and other regulations (for details please refer to specific guidance such as NAADUK NAAD-21 or BESA TR 19).
Under the Building Regulations, while cleaning mechanical ventilation systems is not explicitly mandated, the legal requirement is to provide adequate means of ventilation for people in the building and to commission fixed mechanical ventilation systems (The Building Regulations etc. (Amendment) (England) Regulations 2023).
The requirement to ensure system performance implies the need for ongoing maintenance and cleaning.
What risks does a poorly maintained ventilation system pose?
Ventilation and air conditioning systems consist of various components, including air handling units (AHUs), filters, dampers, ductwork, grilles, and diffusers. To ensure these components operate efficiently, each requires regular inspection and maintenance, as accumulated dust and debris within the system can compromise indoor air quality and reduce overall performance.
For example, dust and debris can collect in all components, inside return air/intake grilles and ductwork, and even in supply air ductwork if filters are not maintained correctly. With neglect these deposits may reduce the air changes rate, contaminate the air supply with odours and provide a breeding ground for mould, mildew and microorganisms, particularly if the air within is humid. All these factors can pose a health risk to building occupants. Deposits in the ventilation system can also represent a fire risk, so it is important to keep them in check.
How can you tell when a ventilation system needs to be cleaned?
It is generally recommended that, rather than setting a cleaning schedule for ductwork and ventilation equipment, facilities managers instead create an inspection schedule so they can determine when cleaning is necessary.
The best place to start when assessing a system is with a simple visual check of the various components looking for any significant build-ups of dust, microbial or other contamination.
A visual inspection from a suitably trained individual may be all that is required in some cases, however, if there is any uncertainty about the cleanliness of the system then it will be necessary to undertake some more in-depth, objective testing (such as the vacuum test discussed below). Objective measurements may be defined in advance as part of the inspection plan .
The point at which cleaning is required will depend on the type of ventilation system and the purpose of the rooms it services. To assist facilities managers, clear guidance is set out in BS EN 15780 (Ventilation for Buildings. Ductwork. Cleanliness of Ventilation Systems). This standard identifies three cleanliness quality categories for ventilation systems shown in the table below:
Quality Class
Typical Examples
Low
Storage rooms
Medium
Offices, hotels, schools, restaurants, general hospital areas
High
Laboratories, treatment areas in hospitals
Table 1 – Cleanliness quality categories within BS EN 15780
The standard goes on to set clear criteria to determine whether HVAC components (e.g. ductwork) servicing the different cleanliness quality classifications require cleaning.
What are acceptable levels of contamination of existing ductwork?
Ductwork should meet the limit outlined in table 2.
More stringent standards apply in critical environments such as hospitals.
Quality Class
Supply Ductwork
Recirculation or secondary air ductwork
Low
< 4.5 g/m2
< 6.0 g/m2
Medium
< 3.0 g/m2
< 4,5 g/m2
High
< 0.6 g/m2
< 3.0 g/m2
Table 2 – Acceptable cleanliness levels in existing ductwork within BS EN 15780
The preferred method for objectively assessing dust contamination in ductwork involves a vacuum test. This process begins by securing a 100 cm² template to a section of the duct using duct tape. The slot or exposed area within the template is then vacuumed using a calibrated air pump fitted with a pre-weighed cassette filter that is passed twice across the template slot—once in each direction. After sampling, the cassette is sealed and sent to an independent laboratory, where the difference in weight before and after sampling is measured. This allows for the calculation of dust accumulation in grams per sample area, providing a reliable indication of contamination levels.
For ductwork serving a sterile or sensitive area, a quantitative method for micro-organisms verification is possible: swab samples can be taken from the surface of the ductwork and sent to an independent laboratory so that cultures can be verified.
How often should ductwork be inspected?
BS EN 15780 recommends that High cleanliness quality class ductwork is inspected every 12 months to ensure it is functioning effectively. Ductwork for Medium and Low cleanliness quality class areas should be inspected at 24 month and 48 month intervals respectively.
Bear in mind, that other parts of the ventilation system (such as the air-handling unit, filters and humidifiers) will need to be checked more regularly. See Table A.2 of BS EN 15780 for guidance.
Any inspection schedule should be adapted to the circumstances based on the results of previous inspections or on changes in the operation of that particular system. This may mean that certain systems or components need to be checked at more regular intervals than mentioned above.
How should I clean phenolic ductwork fabricated from Kingspan KoolDuct?
In order to determine the most suitable cleaning approach through mechanical brushing, NAAD UK carried out up to 100 passes on different sections of phenolic ductwork fabricated with the Kingspan KoolDuct insulation board, including 90 degree elbows and t-sections. These tests repeated the previous tests performed in 2019 but with different duct sizes and with new access panels attachment.

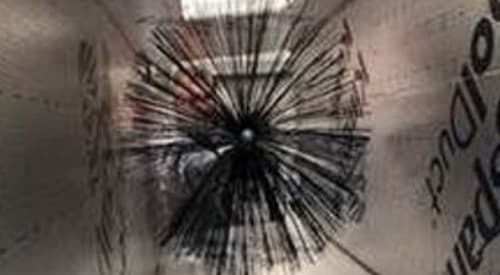

NAAD UK determined that phenolic ductwork can be effectively cleaned by a competent technician using a mechanical rotary brush with plastic fibres (polypropylene fibres of 0.025mm were used) at a speed of up to 900 RPM.

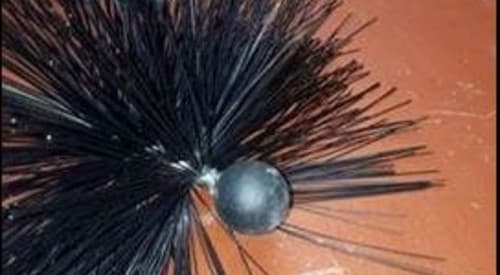

For additional protection around areas such as bends, it is also recommended that a plastic ball is fitted to the end of the metal shaft (shown in the images below).
To support, inspection, cleaning and maintenance, access doors can be easily fitted in phenolic ductwork fabricated with the Kingspan KoolDuct insulation board, either before or after the ductwork is installed; note that work at height to reach the access doors should be carried out from a platform and if ladders are used they cannot be leaning on the ductwork.
The recommended access panel has extended tabs to accommodate the thickness of phenolic ductwork and should be installed in combination with a standard metal angle to provide an anchor point.
By following this best practice advice, NAAD UK say that phenolic ductwork sections can be cleaned in accordance with the requirements of BS EN 15780 for the lifetime of the ductwork.
Please contact us for details on how to fit access panels with extended tabs to Kingspan KoolDuct phenolic ductwork.
