Baytree Specialist School provides dedicated facilities for children and young people with profound and multiple learning difficulties (PMLD). To meet rising demand for places, North Somerset Council invested £18 million to expand the campus with a new building, providing leading facilities for students.

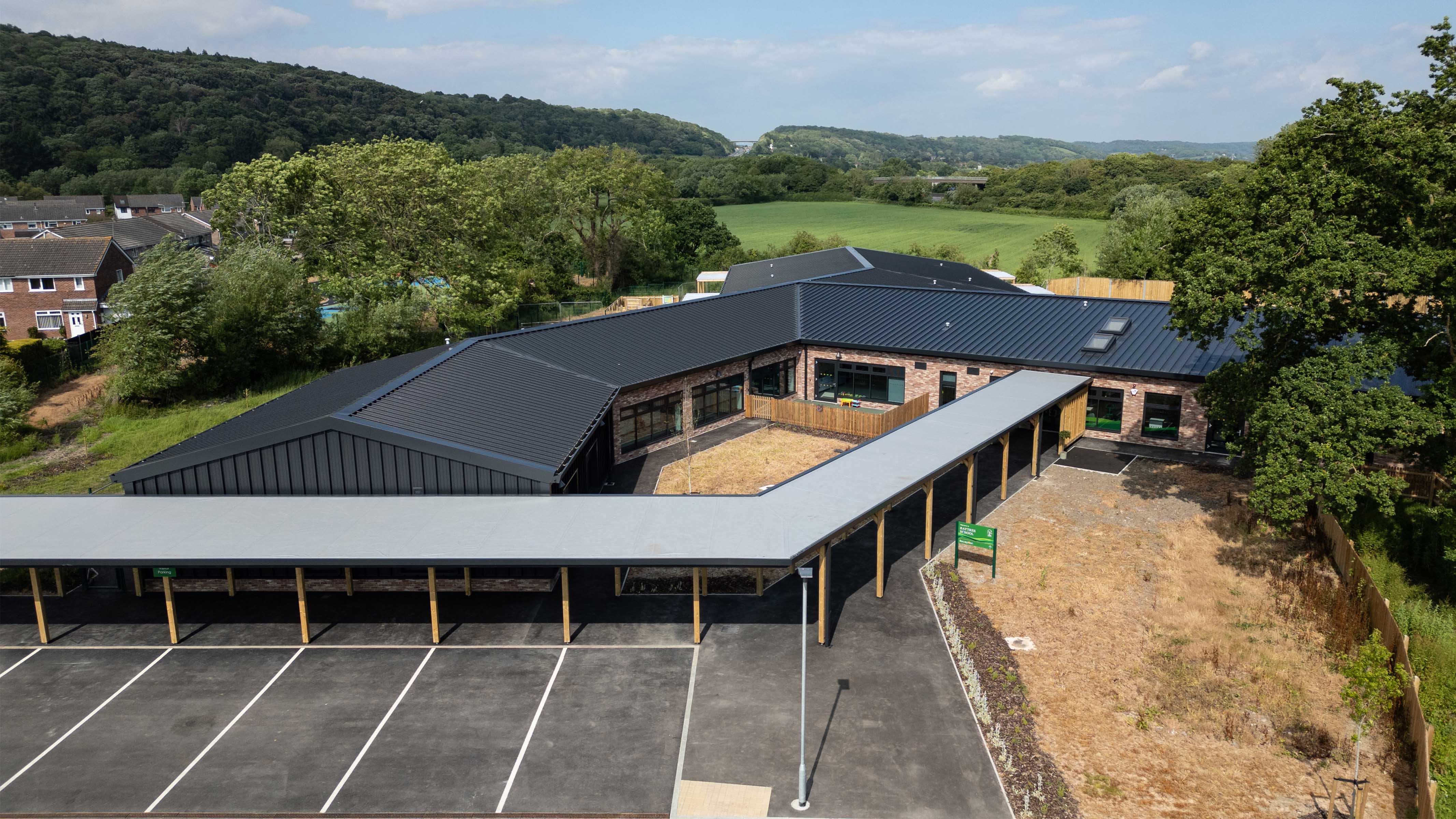

The new single storey building, constructed at a second site, will increase the school's overall capacity to around 120 places for students aged between 3 and 19. The building work has been overseen by Wilmott Dixon and includes a number of classrooms, a recreation hall, specialist therapy rooms and a hydrotherapy pool.
In line with planning requirements set by North Somerset Council, the new building needed to incorporate efficient, low energy solution
LOCATIONWeston-super-Mare, UK
ArchitectRio Architects
ProductsK-Roc Rainscreen Slab
The building was designed to achieve a 25% improvement on the carbon emissions targets set under the 2013 version of Part L of the Building Regulations. This included a fabric specification featuring K-Roc Rainscreen Slab.

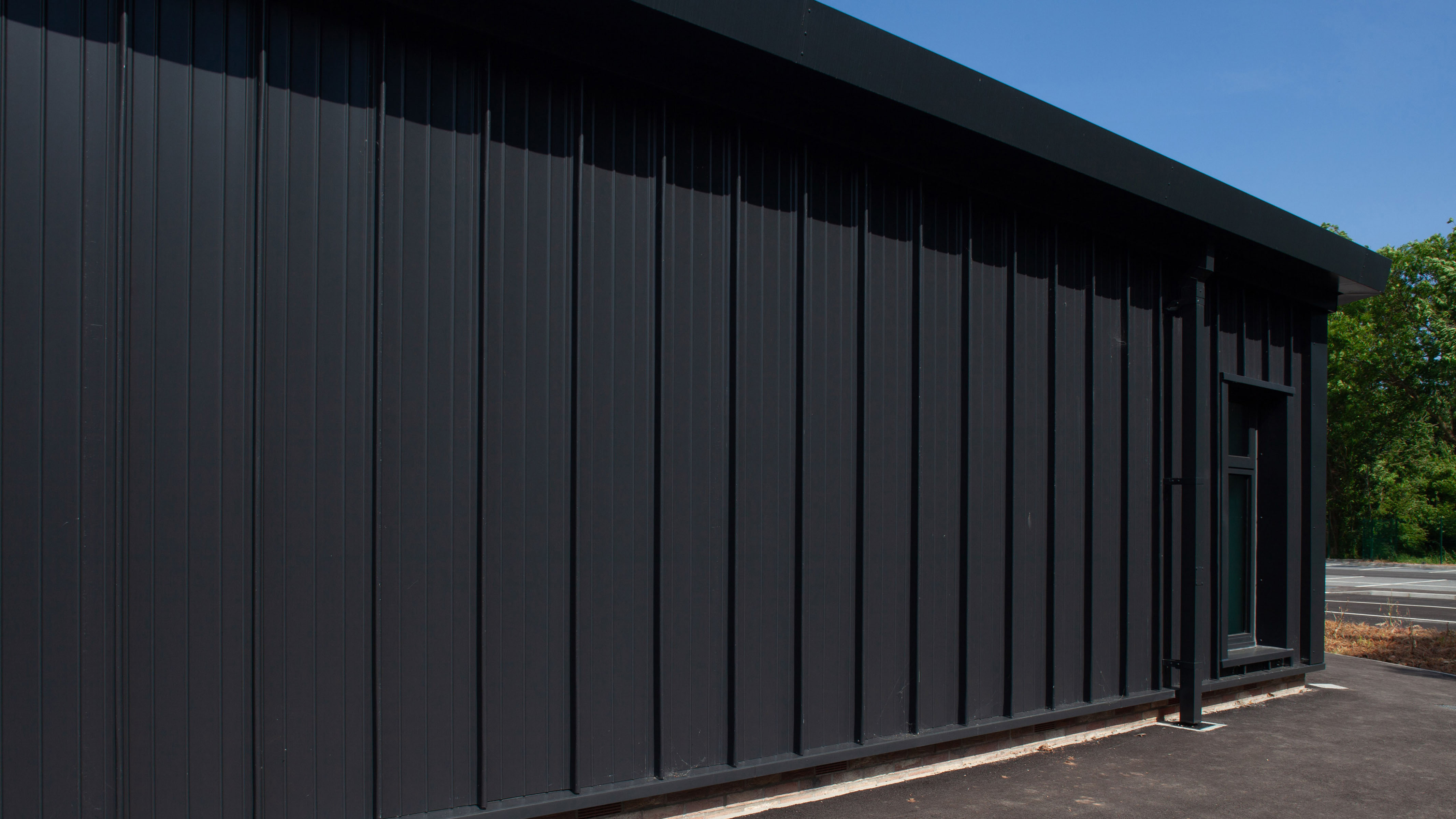

The new building features a steel frame construction with a rainscreen façade. Rio Architects developed what they described as a calm architectural approach, using familiar materials and shapes that were domestic in scale and respectful of the surrounding context. They chose to form the principal façade with a masonry facing, incorporating sections of aluminium cladding and curtain walling. A 110 mm thickness of K-Roc Rainscreen Slab was fitted within the rainscreen system.
The rock mineral fibre insulation achieves a European Classification (Euroclass) A1 rating and use of the product in thicknesses from 30 to 200 mm is covered by BBA Certificate 20/5845.
The insulation slabs achieve a thermal conductivity of 0.034 W/mK, supporting the complete construction to achieve a U-value of 0.15 W/m2K. This notably improves on the U-values set out in the Notional Building specification under both the 2013 and 2021 version of Part L in England and should help to support energy efficient and cost-effective operation of the new school.
K-Roc Rainscreen Slab is manufactured under a management system certified to ISO 9001: 2015 (Quality management systems) and ISO 14001: 2015 (Environmental management systems).
