THE PROJECT

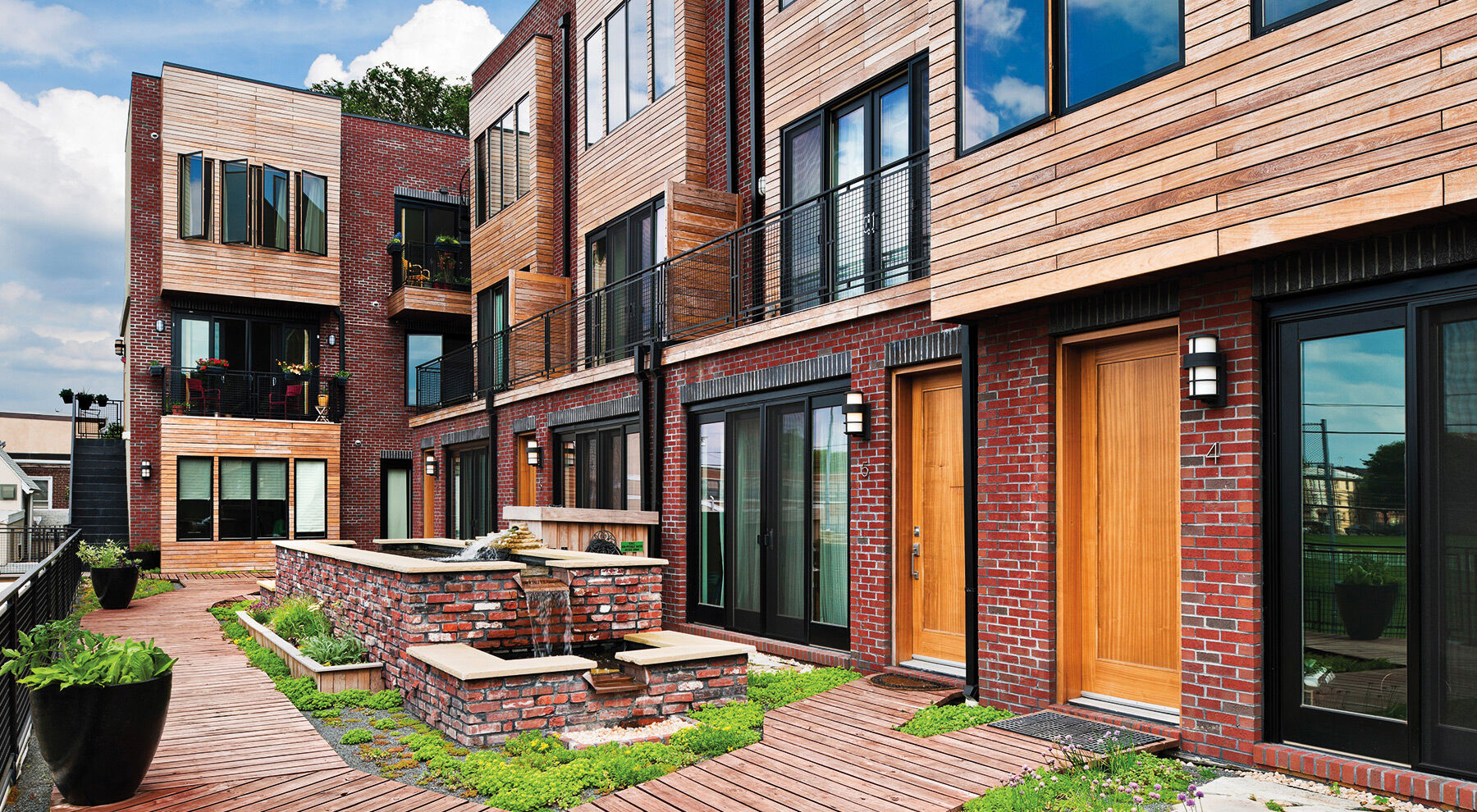

The Icehouse is a three-story complex that will eventually include 36 new condominiums, a one-story parking garage, and commercial property that replaces several aging buildings in the Fishtown section of Philadelphia.

Preserving its heritage, the complex gets its name because it sits on the site of the former Dooley’s Icehouse, a favorite local bar and restaurant that served the surrounding neighborhood and sports leagues playing at Hetzell’s Ball Field across the street.

Ice House Complex

Project Overview

Project Name: Ice House Complex
Location: Philadelphia, PA
Building Type: Residential Multi-family and Commercial
Products: Kingspan KoolDuct System

Download the Case Study

Bucking the downturn in the real estate market, the Icehouse has attracted tremendous interest since it opened in March 2010 because of its proximity to Philadelphia’s historic sites and central business district. Its location near popular (and affluent) residential neighborhoods, as well as the Delaware River waterfront, contributes to the attractiveness of the development. In addition to its location, the fact that the Icehouse was promoted by the developer, the EnVision Group, as a ‘green project’ makes the property highly sought after.

“From the beginning, it was the developer’s intention to build something that was energy efficient and that would minimize the impact on the environment,” said Judy Robinson, AIA, Continuum Architecture and Design, who designed the project. “That’s a philosophy we both shared.” James Maransky, president of EnVision Group, said his organization recently received the LEED for Homes Platinum certification from the U.S. Green Building Council – the highest designation in energy and environmental design and building practices. In fact, the project is the first LEED for Homes Platinum Certified Multi-Family Low-Rise Complex in Philadelphia history.

The Icehouse’s attributes speak for themselves. Among them, the Icehouse incorporates the following:

■     recycled bricks and wooden beams removed from the old structure and repurposed in common areas, such as a stairway and rooftop pond;
■     a ‘green roof’ rainwater recycling system;
■     solar energy panels that power common-area electrical needs;
■     a high-efficiency, tankless system that provides hot water;
■     ev-car electrical hookups in the parking garage; and
■     a high-efficiency heating, ventilation, and air conditioning (HVAC) system.

Of particular interest is the HVAC system that features the low air leakage of pre-insulated ductwork fabricated from the Kingspan KoolDuct® System. This makes it an attractive alternative for a project like the Icehouse, where it keeps the air–leakage rate between one and five percent throughout nearly 10,000 sq. ft of the complex.

“When the KoolDuct® product was recommended by (general contractor) Freedom Enterprises, I was very impressed,” said Maransky. “Having a fabricated duct system with minimal seams helped to ensure that air was flowing into the living space without escaping, making the space much more comfortable and energy efficient. It performed very well during the pressurized testing that was an integral part of the LEED certification process.”

The results from the full system air-leakage testing confirmed that the leakage rate is less than 40 CFM for each condo. KoolDuct® easily meets the Class 3 leakage requirements of SMACNA.

Reduced air leakage also helps air traveling through a ductwork system stay cool when moving through a hot attic, lowering demand for HVAC equipment and reducing energy costs for homeowners. In fact, industry studies show that reduced air leakage through ductwork can lead to:

Fabricated from rigid thermoset non-fibrous phenolic insulation panels, Kingspan KoolDuct® offers many advantages over fiberglass duct board and traditional sheet metal ductwork insulated with fiberglass duct wrap. According to Sterling Minter, vice president of PTM Manufacturing, the system supplier that first introduced KoolDuct® to the project’s specifying engineers, Wachter Associates, “Not only does the pre-insulated system contribute to operational energy efficiency by reducing air-leakage, but the KoolDuct® panel used on the Icehouse project is also the most thermally efficient insulation product commonly used in applications of its kind, delivering a more consistent R-value (R-6.0 at 7/8” and R-8.1 at 13/16”) than typical fiberglass.”

It’s not just Icehouse homeowners who will profit from this system; it also provides the ductwork contractor with just as many advantages – both practical and financial. Ryan Rex, owner of HVAC contracting firm R.P. Rex Heating & Cooling, said, “The fact that it is so easy to work with was really important on the Icehouse because some prefabricated wooden joists did not have duct shafts lined up. We had to make many offsets and transitions to get the ductwork to the air device locations. Also, many areas did not have sufficient space to manually wrap a duct with fiberglass insulation.”

In other areas of the complex, the KoolDuct® System ductwork was delivered in sections up to 13 ft long, requiring less handling and fewer supports, and saving installation time – all benefits for the contractor.

The Project’s Approach Lures Prospective Buyers

Maransky stated that work is continuing on the Icehouse’s second of three phases and that the project’s focus on energy efficiency and LEED certification is an important point of discussion with prospective buyers.

Robinson added that the philosophy has attracted the interest of younger homebuyers, who tend to be more ‘eco-conscious’ than traditional buyers. “The first phase of 13 units sold quickly to buyers who are concerned about energy efficiency and the environment,” he said.

The Icehouse project clearly demonstrates that if you are going to insulate ductwork in order to save energy, it surely makes sense to get the most out of those savings by using the most thermally efficient and air-tight solutions available. Across America, specifiers, contractors, and building owners alike need to ask themselves whether they can really afford the luxury of ignoring the clear advantages that pre-insulated ductwork has to offer, and the triple benefits it brings of cutting energy use, carbon dioxide (CO2) emissions, and potentially costs.
